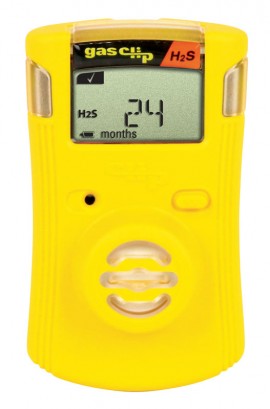

GasClip offers the best of both worlds - a portable lightweight single gas monitor that's entirely maintenance free for two years but still provides a real-time PPM display
Gas Clip Technologies™ Single Gas Clip (SCG) is designed and tested for use in the coldest and hottest environments. It is ready to withstand the harshest working conditions in order to provide quality worker safety.
Bump Check Reminder: All Single Gas Clip models come standard with the bump check reminder feature. When activated, if the detector has not been bump tested within the designated interval, the instrument will emit both a flash and show "buP" across the screen alerting the user, peer, or supervisor that the gas bump test is due. In addition to the flash, the TEST Icon will continually display in the upper left hand corner. This alert increases user accountability and allows for easier policy enforcement. Note the flash feature can be disabled within the IR Link software, if desired.
Programmable unique 6 digit ID: Considering the rugged environment these instruments are often exposed to and used in, identification via serial number, sticker, or marker can be unreliable. With the unique ID feature, units can be identified with a simple push of a button. Available using both limited alpha and full numeric characters, each unit can be assigned a unique ID utilizing, for example an employee ID number, last 4 digits of SSN, or a job code. Unique ID's will also appear on event log reports and bump test logs. ID's will be displayed on the detector screen in segments of 3 digits at a time (first 3 digits, then last 3 digits).
Adjustable alarm set points: To adapt with changing health and safety gas exposure regulations for workers in industrial environments, the Single Gas Clip alarm set points can be easily adjusted via the IR Link software or through the Clip Dock. Detectors can also be special ordered with custom alarm set points.
|Size||3.2" H x 2.0" W x 1.1" D
(81 mm H x 50 mm W x 28 mm D)
|Weight||2.7 oz. (76 g)|
H2S: -40°C to +50°C/ -40°F to +122°F
CO: -40°C to +50°C/ -40°F to +122°F
O2: -50°C to +50°C/ -58°F to +122°F
|Humidity||5% to 95% non-condensing relative humidity|
|Alarms||Visual, Vibrating and Audible (minimum 95 db)|
|Tests||Full function self-test on activation and every 20 hours; continuous automatic battery and sensor tests|
|Battery Life||Two Years; 4 minutes of alarm per day|
|Ratings||IP 67/ Complies with EMC directives 89/336/EEC|
|Certifications||UL 913 and CSA-22.2 No 157 Class 1 Division 1&2 Groups A, B, C and D; ATEX: II 1 G Ex ia IIC T4; IECEX: Ex ia IIC T4|
|Warranty||2 years from activation, 1 year shelf life|
H2S: 0-100 (Low alarm limit: 10 ppm; High alarm limit: 15 ppm)
CO: 0-300 ppm (Low alarm limit: 35 ppm; High alarm limit: 200 ppm)
O2: 0-30% (volume) (Low alarm limit: 19.5%; High alarm limit: 23.5%)
Notes: Real-time gas display or time remaining; adjustable alarm set points and bump check reminder.
Small, compact, easy to use and virtually maintenance free. It has the best sensor resolution on the market with 0.1 ppm for H2S models. The Real-time gas reading capability is also a unique feature to this product line.
It cannot be put into hibernate mode like its counterpart the SGC-P
An excellent monitor, its features make it one of the best single gas maintenance free units on the market today.
One of the most advanced maintenance free disposable single gas detector on the market today. Combining rugged design, reliability, amazing sensor resolution makes this detector fantastic. It is a good fit in virtually any application as a quick and easy safety device.
There is no need for calibration, sensor replacement, battery replacement or battery charging on this model. However, Calibration can be performed on the unit as an option if the user wants to calibrate it and regular maintenance Bump Tests can be performed on the unit depending on personal preference or when site safety regulations require it.
Other unique features on this detector include the ability to adjust the alarm set points, program it with a 6-digit ID, and allows for quick configuration adjustments to comply with current and future regulations. The built-in concussion proof boot provides excellent protection against accidental bumps, scratches and damage; and it is water-proof, with an IP rating of 67 it can be submerged in water up to 1 m deep for 30 minutes. It is also compatible with the GasClip Technologies Clip Dock calibration and bump test station for those who wish to use a hands-free, automated, bump test and calibration procedure.
