BW GasAlertMax XT II Multi-Gas Detector with Motorized Pump Series-

Downloads: datasheet manual

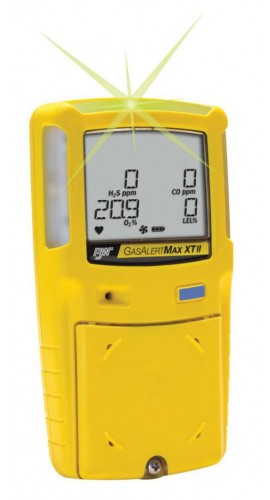

BW GasAlertMax XT II Multi-Gas Detector Series with Motorized Pump

Monitor up to four gases with a simple one-button field operation gas detector. Integrated sampling pump with SmartSample pump technology. Standard event logging and datalogging is accessible and guaranteed to last up to 13 hours on the rechargeable battery pack.

BW GasAlertMax XT II Series Offers

Portable and multi-gas detector simultaneously monitors and displays up to four gases including hydrogen sulfide (H2S) carbon monoxide (CO), new 4-series oxygen (O2) sensor - SR-X10-C1 and combustibles (%LEL). The compact and field tough GasAlertMax XT II features a non-intrusive integrated sampling pump designed for performance, reliability and ease-of-use. SmartSample pump technology improves remote sampling result accuracy and ensures a consistent, uniform flow.

Note: Older models of the Max XT uses a SR-X-MC Oxygen sensor and will not work with the Max XT II gas detector released after June 2010.


  • Integrated sampling pump
  • SmartSample technology and powerful diaphragm pump provide reliable block detection and consistent, uniform flow
  • Easy-to-read, multi-language LCD displays all four gas concentrations (H2S, CO, O2 and combustibles) simultaneously
  • Visual, vibrating and audible alarm indicators
  • Low, High, TWA (time weighted average) and STEL (short-term exposure limit) alarms
  • LCD icons help with fast and easy notification of detector operation
  • Built-in concussion-proof boot
  • Simple auto-calibration procedure
  • Rechargeable batteries provide enough power for a 13-hour shift
  • Best in class block detection with semi-conductor pressure sensor
  • Easy, one-button interface for simple operation
  • Flexible user options minimize training
  • Tamper-proof field operation
  • Multi-language support in English, French, German, Spanish and Portuguese
  • Compatible with MicroDock II automated test and calibration system

BW GasAlertMax XT II Series Specifications

Hydrogen Sulfide (H2S)
Range 0 to 200ppm
Resolution 1ppm
Carbon Monoxide
Range 0 to 1000ppm
Resolution 1ppm
Range 0 to 30.0%
Resolution 0.1%
Combustible Gasses
Range 0 to 100% LEL
0 to 5.0% v/v
Resolution 1% LEL
0.1% v/v
General Specifications
Dimensions 5.1 x 2.8 x 2.0" (13.1 x 7.0 x 5.2cm)
Weight 11.5oz (328g)
Operating Temperature -4 to 122°F (-20 to 50°C)
Operational Humidity 10 to 100% RH (non-condensing)
Typical Battery Life 13 hours at 32·°F (0°C)
8 hours at -4°F (-20°C)
Recharges in 6 hours
Pump Draw Sample from up to 75ft (23m)
Click here for complete specifications on the BW MAXXT

How to Select the Right Gas Detection Solution

by Don Galman

There are many gas detection products on the market that might appear to be the same, but a closer inspection of specification, functionality and features reveals major differences in what products can do and the potential value they can offer. Similarly, individual applications are also unique in their respective designs, needs and processes undertaken.

Know your site risks

Before beginning to consider gas detection equipment, a risk assessment needs to be conducted. Any company employing staff has the obligation to conduct risk assessments to identify potential hazards and these can include potential gas, vapor or Oxygen deficiency risks. If gas hazards are identified, gas detection is applicable as a risk reduction method.

Identifying the prime objective

Depending on the processes being undertaken and the gases being detected, remote or off-site alarm notification plus event data logging/reporting may also be required for Health and Safety management records. Another factor impacting on the need for enhanced reporting functions might be regulatory compliance or a condition of insurance.

Ask the right questions

Having identified the primary objective, the suitable equipment is selected by asking a number of key questions. These fall into three broad categories:

  • The gases to be detected and where they may come from
  • The location and environmental conditions where detection is to take place
  • The ease of use for operators and routine servicing personnel
Identify the gases to be detected and where they may come from

The gases to be detected should be identified by the risk assessment, however experienced gas detection equipment manufacturers and their approved distributors are often able to help in this process, based on their experience of similar applications. However, it is important to remember that it is the end-user’s responsibility to identify all potential hazards. It is also essential to identify the potential source of a gas release as this helps determine the number and location of detectors required for a fixed gas detection system.

Consider the environmental conditions

The performance, accuracy and reliability of any gas detection equipment will be affected by the environmental conditions it is subjected to. Temperature, humidity and pressure levels at the location all have a direct bearing on the type of equipment that should be selected. Additional factors such as potential variations resulting from a production process itself, diurnal/nocturnal fluctuations and seasonal changes may also affect the type of device which is suitable.

Understand product functionality

The next area of consideration relates to additional product functionality. Aspects like wiring configuration are important, especially when retro-fitting into an existing application. If the apparatus is being integrated into a separate safety system, certain communication protocols may also be required such as HART®, Lonworks or Modbus®. Consideration will also need to be given regarding the requirement for local displays on transmitter units and local configuration of the unit and gas displays may also be a useful addition.

Measure the ease of use for operators and routine servicing personnel

Routine maintenance is another important consideration. Some gases and vapors can be detected with a number of different sensing technologies, e.g. Hydrocarbon gases with catalytic beads or Non-dispersive Infrared NDIR. Catalytic beads do not provide fail-to-safety operation and therefore can require a high frequency of routine maintenance, however NDIR based solutions tend to have a higher initial purchase price, but may require less routine maintenance. In-house resource to undertake such routine maintenance needs to be identified and in the absence of such a resource, budgeting for third party maintenance is an important factor in selecting the right equipment.

Need Help Selecting the Right Solution?

If you have questions about any of our gas detection products or services, please don’t hesitate to contact us. Whether you need a hand finding a new product or need help with your current system, just ask our team of Factory Trained Experts.

comments powered by Disqus

What's Included with the BW GasAlertMax XT II Series

  • GasAlertMax XT II detector
  • Sensors (user specified)
  • Stainless-steel alligator clip
  • Rechargeable battery
  • Charging adaptor
  • Calibration hose with quick connect, 3ft / 1m
  • Sampling hose with particulate filter and quick connect, 10ft / 3m
  • Reversible screwdriver
  • Pump filter spares (kit of 5)
  • Instructions and laminated quick reference card

How to: Calibrate a BW Gas Detector

How to: Bump Test a BW Gas Detector

Meet Shauna Park: Our Gas Detection Expert

BW GasAlertMax XT II Sensors

Sensor Description Learn More
SR-H-MC BW SR-H-MC Replacement MICROceL Learn More
SR-M-MC BW SR-M-MC Replacement MICROceL Learn More
SR-W-MP75C BW SR-W-MP75C Replacement MICROpeL Learn More
SR-X2V BW SR-X2V Replacement oxygen (O2) sensor Learn More

Click on a category to view a selection of compatible accessories with the BW GasAlertMax XT II Multi-Gas Detector with Motorized Pump Series.

BW SR-H-MC Replacement MICROceL Hydrogen Sulfide Sensor for GasAlert MicroClip XT & GasAlert Max XT II, H2 SR-H-MC
Replacement MICROceL hydrogen sulfide (H2S) sensor for the GasAlert MicroClip XT or GasAlert Max XT II series of BW gas detectors.

BW SR-M-MC Replacement MICROceL Carbon Monoxide Sensor for GasAlert MicroClip XT & GasAlert Max XT II, CO SR-M-MC
Replacement MICROceL carbon monoxide (CO) sensor for the GasAlert MicroClip XT or GasAlert Max XT II series of BW gas detectors.

BW SR-W-MP75C Replacement MICROpeL Combustible Sensor For GasAlert Detectors, LEL SR-W-MP75C
Replacement MICROpeL combustible (LEL) sensor for the GasAlertMicroClip XT or GasAlertMax XT II series of BW gas detectors.
