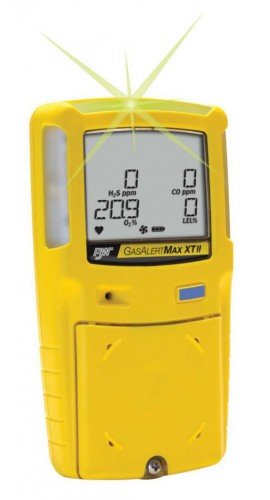

This personal gas detector alerts users of dangerous levels of Combustible Gasses, Oxygen, Hydrogen Sulfide, and Carbon Monoxide in their work area with a simple one-button operation. Features an integrated sampling pump with SmartSample pump technology. Standard event logging and datalogging is accessible and guaranteed to last up to 13 hours on the rechargeable battery pack.
Portable and multi-gas detector simultaneously monitors and displays up to four gases including hydrogen sulfide (H2S) carbon monoxide (CO), new 4-series oxygen (O2) sensor - SR-X10-C1 and combustibles (%LEL). The compact and field tough GasAlertMax XT II features a non-intrusive integrated sampling pump designed for performance, reliability and ease-of-use. SmartSample pump technology improves remote sampling result accuracy and ensures a consistent, uniform flow.
Note: Older models of the Max XT uses a SR-X-MC Oxygen sensor and will not work with the Max XT II gas detector released after June 2010.
|Hydrogen Sulfide (H2S)|
|Range||0 to 200ppm|
|Range||0 to 1000ppm|
|Range||0 to 30.0%|
|Range||0 to 100% LEL
0 to 5.0% v/v
|Dimensions||5.1 x 2.8 x 2.0" (13.1 x 7.0 x 5.2cm)|
|Operating Temperature||-4 to 122°F (-20 to 50°C)|
|Operational Humidity||10 to 100% RH (non-condensing)|
|Typical Battery Life||13 hours at 32·°F (0°C)
8 hours at -4°F (-20°C)
Recharges in 6 hours
|Pump Draw||Sample from up to 75ft (23m)|
There are many gas detection products on the market that might appear to be the same, but a closer inspection of specification, functionality and features reveals major differences in what products can do and the potential value they can offer. Similarly, individual applications are also unique in their respective designs, needs and processes undertaken.
Before beginning to consider gas detection equipment, a risk assessment needs to be conducted. Any company employing staff has the obligation to conduct risk assessments to identify potential hazards and these can include potential gas, vapor or Oxygen deficiency risks. If gas hazards are identified, gas detection is applicable as a risk reduction method.
Depending on the processes being undertaken and the gases being detected, remote or off-site alarm notification plus event data logging/reporting may also be required for Health and Safety management records. Another factor impacting on the need for enhanced reporting functions might be regulatory compliance or a condition of insurance.
Having identified the primary objective, the suitable equipment is selected by asking a number of key questions. These fall into three broad categories:
The gases to be detected should be identified by the risk assessment, however experienced gas detection equipment manufacturers and their approved distributors are often able to help in this process, based on their experience of similar applications. However, it is important to remember that it is the end-user’s responsibility to identify all potential hazards. It is also essential to identify the potential source of a gas release as this helps determine the number and location of detectors required for a fixed gas detection system.
The performance, accuracy and reliability of any gas detection equipment will be affected by the environmental conditions it is subjected to. Temperature, humidity and pressure levels at the location all have a direct bearing on the type of equipment that should be selected. Additional factors such as potential variations resulting from a production process itself, diurnal/nocturnal fluctuations and seasonal changes may also affect the type of device which is suitable.
The next area of consideration relates to additional product functionality. Aspects like wiring configuration are important, especially when retro-fitting into an existing application. If the apparatus is being integrated into a separate safety system, certain communication protocols may also be required such as HART®, Lonworks or Modbus®. Consideration will also need to be given regarding the requirement for local displays on transmitter units and local configuration of the unit and gas displays may also be a useful addition.
Routine maintenance is another important consideration. Some gases and vapors can be detected with a number of different sensing technologies, e.g. Hydrocarbon gases with catalytic beads or Non-dispersive Infrared NDIR. Catalytic beads do not provide fail-to-safety operation and therefore can require a high frequency of routine maintenance, however NDIR based solutions tend to have a higher initial purchase price, but may require less routine maintenance. In-house resource to undertake such routine maintenance needs to be identified and in the absence of such a resource, budgeting for third party maintenance is an important factor in selecting the right equipment.
