BW GasAlertMicroClip X3 Multi-Gas Detector Series, 3 Year -

Downloads: datasheet

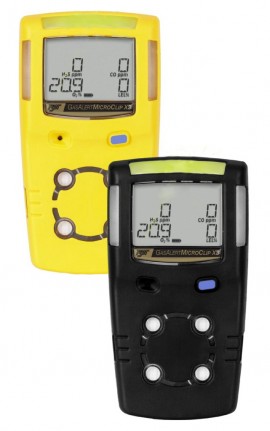

BW GasAlertMicroClip X3 Multi-Gas Detector Series, 3 Year

Simple one button operation minimizes the need for training and gets workers on the job faster. Extended 18 hour battery run time keeps workers safe for longer. Beeping alone while working in a loud environment might not always be enough but with the visible flashing green IntelliFlash™ workers are notified of the dangers. With a new oxygen sensor that extends overall operational life expectancy.

BW MCX3-000M-Y-NA GasAlertMicroClip X3 Multi-Gas Detector, 1 Gas, CO
MCX3-000M-Y-NA $355.50 USD
Was: $450.00
Availability:
2 to 3 Weeks
BW MCX3-00H0-Y-NA GasAlertMicroClip X3 Multi-Gas Detector, 1 Gas, H2S
MCX3-00H0-Y-NA $367.35 USD
Was: $465.00
Availability:
2 to 3 Weeks
BW MCX3-X000-Y-NA GasAlertMicroClip X3 Multi-Gas Detector, 1 Gas, O2
MCX3-X000-Y-NA $347.60 USD
Was: $440.00
Availability:
2 to 3 Weeks
BW MCX3-00HM-Y-NA GasAlertMicroClip X3 Multi-Gas Detector, 2 Gas H2S, CO
MCX3-00HM-Y-NA $406.85 USD
Was: $515.00
Availability:
2 to 3 Weeks
BW MCX3-X00M-Y-NA GasAlertMicroClip X3 Multi-Gas Detector, 2 Gas, O2, CO
MCX3-X00M-Y-NA $406.85 USD
Was: $515.00
Availability:
2 to 3 Weeks
BW MCX3-X0H0-Y-NA GasAlertMicroClip X3 Multi-Gas Detector, 2 Gas O2, H2S
MCX3-X0H0-Y-NA $406.85 USD
Was: $515.00
Availability:
2 to 3 Weeks
BW MCX3-XW00-Y-NA GasAlertMicroClip X3 Multi-Gas Detector, 2 Gas %LEL, O2
MCX3-XW00-Y-NA $406.85 USD
Was: $515.00
Availability:
1 to 2 Weeks

BW GasAlertMicroClip X3 Multi-Gas Detector Series Offers

Easy to wear, slim and compact provides affordable protection from atmospheric gas hazards and extended battery life, especially in cold weather. Features visual compliance at a glance with the flashing, green IntelliFlash™. Easy one-button operation reduces training time and lets workers focus on the job at hand.

Features

  • Meets ACGIH 1 ppm H2S TWA recommendations
  • Oxygen Sensor with an 3 Year Warranty
  • Designed for cold weather performance
  • IP68 rating which protects from total dust ingress and from immersion over 1m
  • IntelliFlash verifies operation and compliance to both the user and supervisor
  • Built-in datalogging & event logging
  • Tamper-proof, one button operation
  • Powered by a rechargeable lithium polymer battery
  • Continuous LCD shows real-time gas concentrations
  • Compact and lightweight design makes it comfortable to wear
  • Water-resistant
  • Simple automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
  • Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
  • Bright wide-angled visual alarm bars
  • Equipped with internal vibrating alarm for high noise areas
  • Built-in concussion-proof boot
  • Multi-language support in English, French, German, Spanish and Portuguese
  • Conveniently manage your fleet using Fleet Manager II

Supported Gases

  • H2S
  • CO
  • O2
  • LEL

Software

Data storage and analysis has never been so simple. With the same look and feel as Fleet Manager, Fleet Manager II allows users to download information directly from BW instruments or the MicroDock II.

With improved functionality, users can:

  • Automatically create accurate and user-friendly reports
  • Easily sort, format and graph data as well as view history
  • Archive and share data easily, including databases
  • Download and manage calibration and bump check records as well as datalogged information onto any PC

BW GasAlertMicroClip X3 Multi-Gas Detector Series Specifications

Gas Measuring Range Resolution
H2S 0 to 100 ppm 1 ppm
CO 0 to 500 ppm 1 ppm
O2 0 to 30.0% 0.1%
Combustible gases 0 to 100% LEL
0 to 5.0% v/v
1%
0.1%
Alarm setpoints for all sensors are user adjustable. Setpoints are automatically displayed during instrument start up.
Size 4.4 x 2.4 x 1.2 in / 11.3 x 6.0 x 3.1 cm
Weight 6.7 oz. / 190 g
Temperature -4 to 122°F / -20 to 50°C
Humidity 0% to 95% RH (non-condensing)
Alarms - Visual, vibrating, audible (95 dB)
- Low, high, STEL, TWA, OL (over limit)
Tests Audible/visual alarms on activation, sensors, battery and circuitry (continuous)
Typical Battery Life 18 hours; recharges in less than 6 hours
User Options Confidence beep
Set STEL interval
Sensor on/off
Latching alarms
Safe display mode
Stealth mode
Calibration lock
Auto zero on start up
O2 auto calibration on start up
Set bump test interval
Force bump test when overdue
Ratings EMI/RFI: Complies with EMC Directive 2004/108/EC IP 66
Certifications and Approvals Class I, Div. 1, Gr. A, B, C, D
ATEX: II 1 G
Ex ia IIC T4 Ga
IECEx: Ex ia IIC T4 Ga
European Conformity
Click here for complete specifications on the BW MCX3

How to Select the Right Gas Detection Solution

by Don Galman

There are many gas detection products on the market that might appear to be the same, but a closer inspection of specification, functionality and features reveals major differences in what products can do and the potential value they can offer. Similarly, individual applications are also unique in their respective designs, needs and processes undertaken.

Know your site risks

Before beginning to consider gas detection equipment, a risk assessment needs to be conducted. Any company employing staff has the obligation to conduct risk assessments to identify potential hazards and these can include potential gas, vapor or Oxygen deficiency risks. If gas hazards are identified, gas detection is applicable as a risk reduction method.

Identifying the prime objective

Depending on the processes being undertaken and the gases being detected, remote or off-site alarm notification plus event data logging/reporting may also be required for Health and Safety management records. Another factor impacting on the need for enhanced reporting functions might be regulatory compliance or a condition of insurance.

Ask the right questions

Having identified the primary objective, the suitable equipment is selected by asking a number of key questions. These fall into three broad categories:

  • The gases to be detected and where they may come from
  • The location and environmental conditions where detection is to take place
  • The ease of use for operators and routine servicing personnel
Identify the gases to be detected and where they may come from

The gases to be detected should be identified by the risk assessment, however experienced gas detection equipment manufacturers and their approved distributors are often able to help in this process, based on their experience of similar applications. However, it is important to remember that it is the end-user’s responsibility to identify all potential hazards. It is also essential to identify the potential source of a gas release as this helps determine the number and location of detectors required for a fixed gas detection system.

Consider the environmental conditions

The performance, accuracy and reliability of any gas detection equipment will be affected by the environmental conditions it is subjected to. Temperature, humidity and pressure levels at the location all have a direct bearing on the type of equipment that should be selected. Additional factors such as potential variations resulting from a production process itself, diurnal/nocturnal fluctuations and seasonal changes may also affect the type of device which is suitable.

Understand product functionality

The next area of consideration relates to additional product functionality. Aspects like wiring configuration are important, especially when retro-fitting into an existing application. If the apparatus is being integrated into a separate safety system, certain communication protocols may also be required such as HART®, Lonworks or Modbus®. Consideration will also need to be given regarding the requirement for local displays on transmitter units and local configuration of the unit and gas displays may also be a useful addition.

Measure the ease of use for operators and routine servicing personnel

Routine maintenance is another important consideration. Some gases and vapors can be detected with a number of different sensing technologies, e.g. Hydrocarbon gases with catalytic beads or Non-dispersive Infrared NDIR. Catalytic beads do not provide fail-to-safety operation and therefore can require a high frequency of routine maintenance, however NDIR based solutions tend to have a higher initial purchase price, but may require less routine maintenance. In-house resource to undertake such routine maintenance needs to be identified and in the absence of such a resource, budgeting for third party maintenance is an important factor in selecting the right equipment.


Need Help Selecting the Right Solution?

If you have questions about any of our gas detection products or services, please don’t hesitate to contact us. Whether you need a hand finding a new product or need help with your current system, just ask our team of Factory Trained Experts.


comments powered by Disqus

Whats included with the BW GasAlertMicroClip X3 Multi-Gas Detector Series

  • Detector complete with specified sensor(s), stainless steel alligator clip, and concussion-proof housing
  • Rechargeable Battery
  • Wall Outlet Charging Adaptor
  • Calibration/Test Cap and Hose
  • Manual
  • Multi-language CD manual

How to: Calibrate a BW Gas Detector

How to: Bump Test a BW Gas Detector

Meet Shauna Park: Our Gas Detection Expert

Click on a category to view a selection of compatible accessories with the BW GasAlertMicroClip X3 Multi-Gas Detector Series, 3 Year .

-
BW SR-H-MC Replacement MICROceL Hydrogen Sulfide Sensor for GasAlert MicroClip XT & GasAlert Max XT II, H2 SR-H-MC
Replacement MICROceL hydrogen sulfide (H2S) sensor for the GasAlert MicroClip XT or GasAlert Max XT II series of BW gas detectors.




-
BW SR-M-MC Replacement MICROceL Carbon Monoxide Sensor for GasAlert MicroClip XT & GasAlert Max XT II, CO SR-M-MC
Replacement MICROceL carbon monoxide (CO) sensor for the GasAlert MicroClip XT or GasAlert Max XT II series of BW gas detectors.




-
BW SR-W-MP75C Replacement MICROpeL Combustible Sensor For GasAlert Detectors, LEL SR-W-MP75C
Replacement MICROpeL combustible (LEL) sensor for the GasAlertMicroClip XT or GasAlertMax XT II series of BW gas detectors.




-
BW SR-X3P Replacement Sensor for GasAlertMicroClip X3, O2, 3 Year SR-X3P
Replacement oxygen (O2) sensors make gas detector maintenance easy. For use with the BW GasAlertMicroClip X3 series of BW gas detectors.
Note: This sensor includes a 3 year warranty from BW Technologies.
